C Series Marine Capstans



CB Stand Alone Capstan
CA Integrated Capstan
Standalonecapstan integratedcapstan





LINE PULL START PULL REQUIRED MOTOR POWER ( KW @ 50HZ )
KG KG 10M/MIN 15M/MIN 20M/MIN 25M/MIN 30M/MIN
1000 2000 2.2 3 4 4 5.5
1500 3000 3 4 5.5 7.5 7.5
2000 4000 4 5.5 7.5 11 11
2500 5000 5.5 7.5 11 11 15
3000 6000 5.5 7.5 11 15 18.5
4000 8000 7.5 11 15 18.5 22
5000 10000 11 15 22 22 30
Capstan Options:  To Be Specified By The Customer
Start Line Pull Capacity Foot Switch
Continuous Line Pull Capacity Space Heater
Line Speed Capacity Back Stop Device
Available Power Supply Brake Motor
Area Classification ( Class / Div / Zone ) Drum Diameter / Cable Capacity
Insulation  ( IP ) Cable Guide

Motor power based on standard 50 Hz motors running under 50 Hz power supply.  60 Hz motors are also available.

Standard 50 Hz motor can run under 60 Hz but with different output.  Consult us for changes in motor torque, line speed and motor power with your requirements


Ordering Information

Series C
Style A – Integrated * B - Free Standing
Line Pull  ( MT )  1-5
Line Speed ( m / min. )  10-30
Hazardous Classification A - Non Hazardous * B - Class 1 Div. 2 C - Class 1 Div. 1
Protection A - IP55 * B - IP56
Rotation A - Single Direction * B - Single Direction w/ Back Stop C - Reversible
Motor Brake A – Without * B – With
Foot Switch A – Without * B – With
Motor Space Heater A – Without * B – With
Control Box Space Heater A - Without * B – With
Power Supply 220-660 V / 3 Ph, 50-60 Hz

* Indicates Zalda Technology C series standard

Specification code example:  Model C-B-2-10-C-B-C-B-B-A-A-440-60 stands for : Free standing capstan, with 2T ( 44000 lb / 20KN) line pull @ 10m / min ( 30fpm ) line speed, Class 1 Div. 1 classification, IP56 insulation, reversible motor with brake, foot switch, without space heaters, 440V / 60Hz / 3Ph power supply.

Most features can be customized.

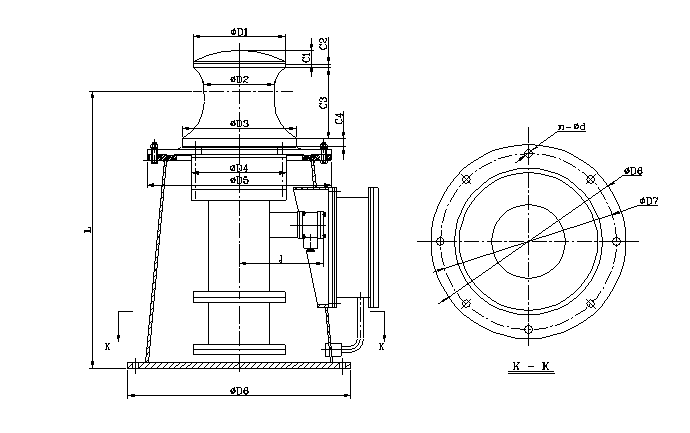

CB Series Integrated Capstan Dimension Table
Line Pull Line Speed Motor Power DIMENSIONS  (mm) Anchor
(T) (m/min) (KW) Bolts
      D1 D2 D3 D4 D5 D6 D7 C1 C2 C3 C4 J L n d ( mm )
1 20 4 350 280 450 300 700 850 790 55 25 273 30 320 1100 6 24 6-M20
1.5 20 5.5 350 280 450 300 700 850 790 55 25 273 30 320 1100 8 24 8-M20
2 20 7.5 350 280 450 360 700 850 790 55 30 273 30 320 1100 8 28 8-M24
3 20 11 350 280 450 360 720 900 800 55 30 273 30 320 1100 8 28 8-M24
4 20 15 350 280 480 360 740 900 800 55 30 273 50 320 1100 10 28 10-M24

All dimensions in mm
Designed might have changed without notice.  Contact us for confirmation prior to ordering
See Z series quick release hook for dimensions relavent to CA series capstans installation
