BOLLARDS - SERIES DBB1
Pull Tonnage Type A B C D E F G H I Bolt No.
30-40 DBB1-30 680 320 400 160 205 230 50 320 55 6
40-60 DBB1-40 870 400 500 200 250 270 60 380 65 8
60-80 DBB1-60 1060 450 630 250 310 340 70 470 85 8
80-100 DBB1-80 1330 520 800 320 390 450 80 600 100 8
100-120 DBB1-100 1500 600 890 360 440 480 90 650 115 10
120-150 DBB1-120 1680 650 1000 400 490 560 90 730 130 10
150-180 DBB1-150 1890 720 1130 450 540 640 100 830 140 10
180-200 DBB1-180 2110 780 1250 500 600 700 100 900 160 10

²  All Dimensions in mm / All Ratings in Metric Ton / Customization Available / Pull Rating Based on 2 Posts Combined

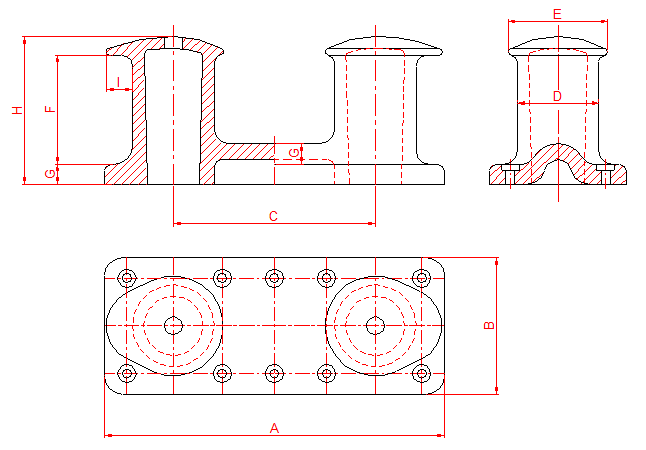

dbb1dimensions
