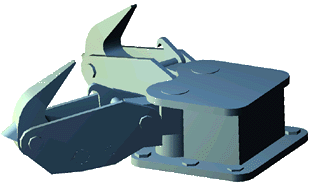

Z2 Double Quick Release Hook System



Modular Hook Design, Counter Balanced, 30T-200T SWL Per Hook

Hook Elevates in Vertical plane to Accommodate Mooring Line with up to 60 Degree Inclination

Manual Release / Safety Lock Standard on All Models

Local and / or Remote Release Control ( Electric / Hydraulic / Pneumatic ) Available

With or Without CA series  integrated capstan, custom designed for various EXD - IP working environments

Local and / or Central Load Monitoring / Alarm / Data Management Available

All Major Classification Society Certificates Available

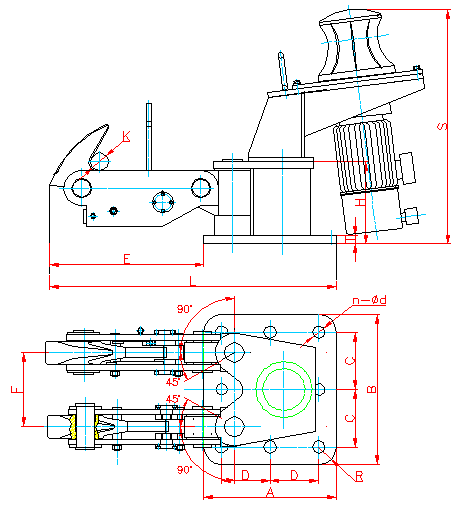

  Z2 Series Fender Specifications



Z2 Series Dimension Table

SWL MBC DIMENSIONS (mm) Anchor Bolts Wgt.
( T ) ( T ) A B C D E F T H L K R S N d (mm) ( Kgs )
45 90 750 850 325 275 776 420 40 465 1526 150 100 1325 6 70 6-M64 1000
60 120 750 850 325 275 776 420 50 465 1526 150 100 1345 6 70 6-M64 1100
75 150 750 850 325 275 776 420 50 465 1526 150 100 1325 7 70 7-M64 1250
100 200 900 1100 450 350 1040 520 60 480 1940 150 100 1345 6 82 6-M76 2100
125 250 900 1100 450 350 1040 520 60 480 1940 150 100 1345 7 82 7-M76 2400
150 300 1000 1200 500 400 1010 520 60 490 2010 150 100 1345 7 82 7-M76 3100
All dimensions in mm.
Capstan optional
SWL listed are per hook. Multiply by hook numbers to get combined SWL for multiple hook systems
MBC listed are Mounting Base Capacity
Weights listed excluding weight for anchor bolt sets and capstan
All weights and dimensions listed are subject to change without notice
