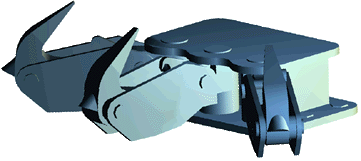

Z3 Triple Quick Release Hook System

　

Modular Hook Design, Counter Balanced, 30T-200T SWL Per Hook

Hook Elevates in Vertical plane to Accommodate Mooring Line with up to 60 Degree Inclination

Manual Release / Safety Lock Standard on All Models

Local and / or Remote Release Control ( Electric / Hydraulic / Pneumatic ) Available

With or Without CA series  integrated capstan, custom designed for various EXD - IP working environments

Local and / or Central Load Monitoring / Alarm / Data Management Available

All Major Classification Society Certificates Available

　

　
  Z3 Series Fender Specifications

　

Z3 Series Dimension Table

SWL MBC DIMENSIONS (mm) Anchor Bolts 　Wgt.
( T ) ( T ) A B C D E F T H L K R S n d G (mm) ( Kgs )
45 135 700 1000 400 250 765 325 40 398 1710 150 100 1350 6 70 0 6-M64 1070
60 180 850 1000 400 375 860 350 50 460 1710 150 100 1350 6 82 50 6-M76 1800
75 225 850 1100 450 375 860 380 50 460 1710 150 100 1350 6 82 50 6-M76 1880
100 300 1100 1300 550 500 1040 400 60 480 2140 150 100 1350 7 82 50 7-M76 3200
125 375 1100 1300 550 500 1050 420 60 500 2140 150 100 1350 8 82 0 8-M76 3600
150 450 1100 1400 600 500 1100 480 60 530 2200 150 100 1350 9 82 0 9-M76 4200
All dimensions in mm.
Capstan optional
SWL listed are per hook. Multiply by hook numbers to get combined SWL for multiple hook systems
MBC listed are Mounting Base Capacity
Weights listed excluding weight for anchor bolt sets and capstan
All weights and dimensions listed are subject to change without notice
　 All materials herein are properties of Zalda Technology, all rights reserved.
