F Series Floating Fenders

 Ideal For Applications with Wide Tidal Range

 Simple and Versatile

  Easy Installation, Maintenance and Replacement For Both Dock & Deck Applications

 Slow Pressure Build Up

 No Need For Pressurization


F Series Fender Specifications

Performance Information

At Rated Fender Deflection of 60%

Model

Ultra High Formula

Super High Formula

High Formula

Standard Formula

Low Formula

Energy Absorption

Reaction Force

Energy Absorption

Reaction Force

Energy Absorption

Reaction Force

Energy Absorption

Reaction Force

Energy Absorption

Reaction Force

T-M

T

T-M

T

T-M

T

T-M

T

T-M

T

F600x1200

4.0

23.6

2.9

17.2

1.9

11.8

1.5

9

0.9

5.4

F600x1800

6.4

39.0

4.7

28.4

3.3

19.5

2.5

15

1.5

9.0

F600x2400

9.0

55.5

6.5

40.5

4.5

27.7

3.5

21

2.0

12.7

F600x3000

11.5

70.8

8.4

51.7

5.7

35.4

4.4

27

2.7

16.3

F700x1500

6.8

35.4

5.0

25.9

3.4

17.6

2.7

13.6

1.5

8.2

F900x1500

11.1

53.0

8.2

38.7

5.6

26.5

4.3

20

2.5

12.2

F900x1800

14.0

56.6

10.2

41.4

7.0

28.3

5.4

22

3.3

13.1

F900x2400

19.8

80.1

14.5

58.6

6.8

40.1

7.6

31

4.6

18.5

F900x3000

25.5

103.8

18.7

75.9

12.7

51.9

9.8

40

5.9

24.0

F900x3700

31.3

127.4

22.8

93.1

15.6

63.6

12

49

7.2

29.4

F900x4300

37.0

150.9

27.0

110.3

18.6

75.5

14

58

8.6

34.9

F1000x1500

12.5

46.0

9.2

33.6

6.3

23.0

4.8

17.6

2.9

10.6

F1000x2000

17.9

67.2

13.2

49.1

9.0

33.6

6.9

25.9

4.2

15.5

F1200x1800

21.6

66.1

15.8

48.2

10.8

33.0

8.4

26.0

5.0

15.2

F1200x2000

24.1

74.3

17.6

54.2

12.0

37.1

9.3

28.6

5.6

17.1

F1200x2400

32.0

97.9

23.4

71.5

16.0

48.9

12.0

38.0

7.3

22.6

F1200x3000

42.4

130.9

31.0

95.6

21.2

65.5

16.0

50.0

9.8

30.2

F1200x3700

52.5

160.4

38.3

117.2

26.2

80.1

20.0

62.0

12.1

37.0

F1200x4900

73.0

222.9

53.3

162.8

36.5

111.5

28.0

86.0

16.8

51.4

F1200x6100

93.5

285.4

68.3

208.5

46.7

142.7

36.0

110.0

21.6

65.9

F1350x2500

40.3

110.8

29.5

81.0

20.1

55.5

15.5

42.6

9.3

25.6

F1500x2400

48.5

117.9

35.5

86.2

24.3

58.9

18.0

45.0

11.2

27.2

F1500x3000

61.5

153.3

45.0

112.1

30.7

76.7

23.7

58.9

14.2

35.4

F1500x4300

96.7

235.9

70.7

172.3

48.3

117.9

37.0

91.0

22.3

54.5

F1500x4900

112.6

274.8

82.2

200.8

56.3

137.4

43.0

106.0

26.0

63.4

F1500x5500

128.4

313.7

93.8

229.2

64.1

156.8

49.0

121.0

29.6

72.4

F1700x3000

74.7

164.0

54.7

119.8

37.4

82.0

28.8

63.0

17.2

37.8

F1800x3700

110.6

219.3

78.8

160.3

53.9

109.7

41.0

84.0

24.9

50.6

F1800x4300

130.8

265.3

95.6

193.9

65.5

132.7

50.0

102.0

30.2

61.2

F1800x4900

153.5

312.5

112.2

228.4

76.8

156.2

59.0

120.0

35.4

72.1

F1800x5500

176.5

359.6

129.0

262.9

88.3

179.9

68.0

138.0

40.7

83.0

F1800x6100

199.1

405.6

145.5

296.4

99.6

202.8

77.0

156.0

46.0

93.6

F2000x3500

120.4

224.0

88.0

163.8

60.3

112.1

46.3

86.2

27.8

51.7

F2000x4000

143.1

266.5

104.5

194.8

71.6

133.3

55.1

102.5

33.0

61.5

F2000x4500

165.4

307.7

120.8

224.9

82.7

153.9

63.6

118.4

38.1

71.1

F2100x4300

175.1

305.4

128.0

223.2

87.5

152.7

67.0

117.0

40.4

70.5

F2100x4900

206.4

359.6

150.8

262.9

103.2

179.9

79.0

138.0

47.6

83.0

F2100x5500

237.3

413.9

173.3

302.4

118.6

207.0

91.0

159.0

54.8

95.5

F2100x6100

268.6

468.1

196.3

342.1

134.3

234.1

103.0

180.0

62.0

108.1

F2100x6700

299.5

522.4

218.8

381.8

149.7

261.2

115.0

201.0

69.1

120.5

F2400x4300

222.5

339.7

162.6

248.2

111.2

169.8

85.0

130.0

51.4

78.4

F2400x4900

263.5

402.2

192.6

293.9

131.7

201.1

101.0

155.0

60.8

92.8

F2400x5500

304.5

464.7

222.5

339.6

152.2

232.3

117.0

179.0

70.3

107.3

F2400x6100

345.5

527.1

252.5

385.2

172.7

263.6

133.0

203.0

79.7

121.6

F2400x6700

386.5

589.6

282.5

430.9

193.2

294.8

149.0

227.0

89.2

136.0

F2500x4000

212.5

317.2

156.2

231.8

106.3

158.6

81.7

122.1

49.0

73.2

F2500x5500

318.1

474.0

232.5

346.4

159.1

237.1

122.4

182.3

73.4

109.4

F2700x4900

320.0

434.0

233.8

317.1

160.0

217.0

123.0

167.0

73.8

100.1

F2700x5500

371.0

503.5

271.1

368.0

185.5

251.8

143.0

194.0

85.7

116.2

F2700x6100

422.5

573.1

308.7

418.8

211.2

286.5

163.0

220.0

97.5

132.3

F2700x6700

388.6

474.0

284.0

346.4

194.2

237.1

182.0

247.0

109.3

148.3

F3000x4900

379.3

470.5

277.1

343.8

189.7

235.2

145.9

181.0

87.5

108.6

F3000x5500

452.2

551.9

330.5

403.3

226.2

275.9

174.0

210.0

104.4

127.4

F3000x6000

490.7

608.4

358.6

444.7

245.3

304.3

188.7

234.0

113.3

140.4

F3000x6100

515.9

629.8

377.0

460.2

258.0

314.9

198.0

242.0

119.1

145.3

F3000x6700

579.5

707.6

423.5

517.1

289.8

353.7

223.0

272.0

133.8

163.3

F3300x4500

397.3

448.1

290.3

327.4

198.6

224.0

152.7

172.3

91.7

103.4

F3300x6500

642.1

724.1

469.2

529.1

321.0

362.0

247.0

278.5

148.2

167.1

F3300x10600

1143.6

1290.1

835.7

942.8

571.7

645.0

439.8

496.2

263.9

297.7

F1500x3700

80.9

196.9

59.1

143.9

40.5

98.5

31.0

75.0

18.7

45.5

Performance data listed above @ 60% rated fender deflection.
Five standard formulas were listed. We do offer higher performance formula and customize fender performance according to requirements.
  Please inquire with your special requirements.
Performance data listed has +/- 10% tolerance.

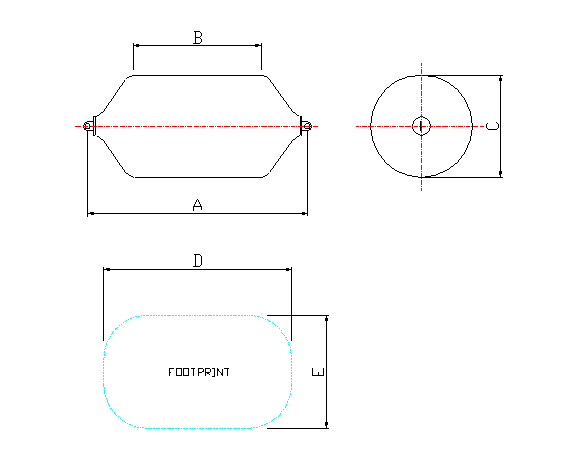

F Series Dimension Table



Model

Dimensions

A

B

C

D

E

F600x1200

1200

700

600

900

750

F600x1800

1800

1300

600

1500

750

F600x2400

2400

1900

600

2100

750

F600x3000

3000

2500

600

2700

750

F700x1500

1500

880

700

1100

900

F900x1500

1500

800

900

1100

1200

F900x1800

1800

1100

900

1400

1200

F900x2400

2400

1600

900

2000

1200

F900x3000

3000

2200

900

2700

1200

F900x3700

3700

2800

900

3300

1200

F900x4300

4300

3400

900

3900

1200

F1000x1500

1500

700

1000

1000

1300

F1000x2000

1500

1200

1000

1400

1300

F1200x1800

1800

800

1200

1200

1500

F1200x2000

2000

1000

1200

1300

1500

     F1200x3000

3000

2000

1200

2400

1500

     F1200x3700

3700

2700

1200

3000

1500

     F1200x4900

4900

3900

1200

4300

1500

     F1200x6100

6100

5100

1200

5500

1500

     F1350x2500

2500

1400

1350

1700

1700

     F1500x2400

2400

1200

1500

1800

1900

     F1500x3000

3000

1800

1500

2200

1900

     F1500x3700

3700

2500

1500

3000

1900

     F1500x4300

4300

3100

1500

3600

1900

     F1500x4900

4900

3700

1500

4200

1900

     F1500x5500

5500

4300

1500

4800

1900

     F1700x3000

3000

1700

1700

2100

2100

     F1800x3700

3700

2300

1800

2700

2300

     F1800x4300

4300

2900

1800

3300

2300

     F1800x4900

4900

3500

1800

3900

2300

     F1800x5500

5500

4000

1800

4500

2300

     F1800x6100

6100

4700

1800

5200

2300

     F2000x3500

3500

2100

2000

2600

2500

     F2000x4000

4000

2600

2000

3100

2500

     F2000x4500

4500

3000

2000

3500

2500

     F2100x4300

4300

2700

2100

3300

2700

     F2100x4900

4900

3300

2100

3900

2700

     F2100x5500

5500

3900

2100

4500

2700

     F2100x6100

6100

4500

2100

5000

2700

     F2100x6700

6700

5100

2100

5700

2700

     F2400x4300

4300

2500

2400

3100

3000

     F2400x4900

4900

3100

2400

3800

3000

     F2400x5500

5500

3700

2400

4400

3000

     F2400x6100

6100

3700

2400

5000

3000

     F2400x6700

6700

4900

2400

5600

3000

     F2500x4000

4000

2200

2500

2900

3100

     F2500x5500

5500

3700

2500

3100

4300

     F2700x4900

4900

2900

2700

3600

4400

     F2700x5500

5500

3500

2700

4200

3400

     F2700x6100

6100

4100

2700

4800

3400

     F2700x6700

6700

4800

2700

5400

3400

     F3000x4900

4900

2800

3000

3500

3800

     F3000x5500

5500

3300

3000

4100

3800

     F3000x6000

6000

3900

3000

4600

3800

     F3000x6100

6100

4000

3000

4700

3800

     F3000x6700

6700

4600

3000

5300

3800

     F3300x4500

4500

2200

3300

3000

4100

     F3300x6500

6500

4200

3300

5100

4100

     F3300x10600

10600

8300

3300

9200

4100

F1200x2400

2400

1400

1200

1800

1500

        All dimensions in mm.
