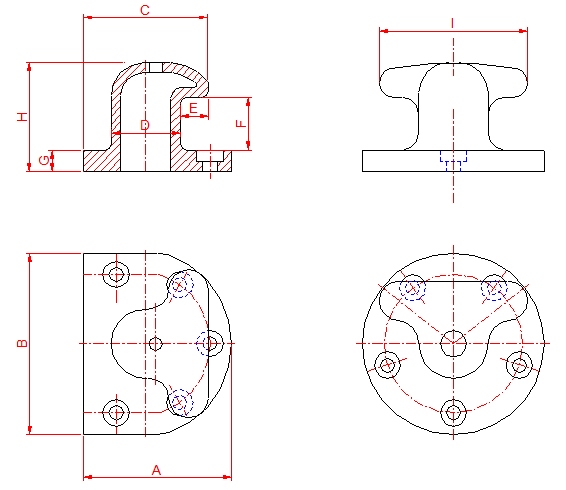

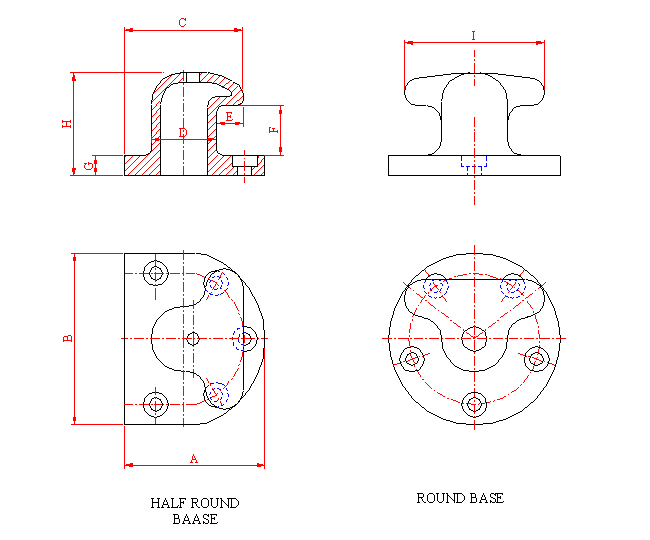

BOLLARDS - SERIES SBA1
Pull Tonnage Type A B C D E F G H I Bolt No.
10-15 SBA1-10 350 400 330 170 80 140 50 280 300 5
20-30 SBA1-20 450 550 380 210 90 160 65 330 450 5
30-50 SBA1-30 550 650 480 260 120 200 75 410 550 5
50-75 SBA1-50 670 800 590 320 130 250 85 500 600 5
75-100 SBA1-75 730 840 630 360 140 280 100 580 700 7
100-125 SBA1-100 810 990 720 380 160 300 100 600 750 7
125-150 SBA1-125 900 1100 830 430 200 320 110 650 750 7
150-200 SBA1-150 920 1120 850 450 200 320 120 660 800 7

²  All Dimensions in mm / All Ratings in Metric Ton / Customization Available


dba1dimensions

²  All Dimensions in mm / All Ratings in Metric Ton / Customization Available
