R Series Rectangular Fenders



 Simple and Versatile - Easy Installation, Maintenance and Replacement

 Ideal For Pile, Beam, Ship Ramp

  Choice of Rubber or PE Rubbing Surface

  D Bore or O Bore

R Series Fender Specifications

Performance Information

At Rated Fender Deflection of 40%

ModelB x φ

Standard

High

Energy Absorption
(T-M)

Reaction Force
( T )

Energy Absorption
(T-M)

Reaction Force
( T )

R150 x 75 x 1000L 1.3 69.8 1.6 79.6

R200 x 100 x 1000L

2.3

89.4

2.8

108.0

R250 x 125 x 1000L

3.6

111.5

4.4

134.7

R300 x 150 x 1000L

5.2

133.5

6.3

161.2

R400 x 200 x 1000L

9.2

177.4

11.2

214.3

R500 x 250 x 1000L

14.2

221.3

17.3

267.3

Performance data listed for fender length of 1m. Other fender lengths available. Calculate fender performance proportionally for fenders at different lengths.
Two standard formulas were listed. We do offer higher performance formula and customize fender performance according to requirements. Please inquire with your special requirements.
Performance data listed has +/-10% tolerance.
R Series Fender Specifications

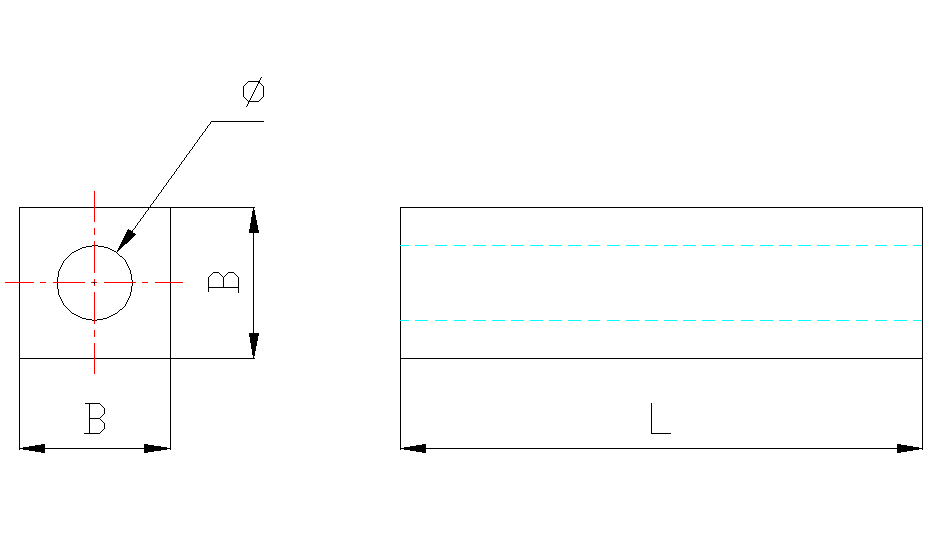

R Series Dimension Table

Dimensions

B

φ

L

R 150 x 75

150

75

500

~

3000

R 200 x 100

200

100

R 250 x 125

250

125

R 300 x 150

300

150

R 400 x 200

400

200

R 500 x 250

500

250

All dimensions in mm.
Standard fender length 800 mm - 3000 mm. Custom length available on request.
Bolt hole positions can be customized.
