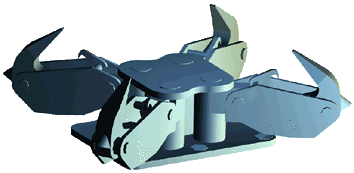

Z4B Quadruple (Back To Back) Quick Release Hook System

　

Modular Hook Design, Counter Balanced, 30T-200T SWL Per Hook

Hook Elevates in Vertical plane to Accommodate Mooring Line with up to 60 Degree Inclination

Manual Release / Safety Lock Standard on All Models

Local and / or Remote Release Control ( Electric / Hydraulic / Pneumatic ) Available

With or Without CA series  integrated capstan, custom designed for various EXD - IP working environments

Local and / or Central Load Monitoring / Alarm / Data Management Available

All Major Classification Society Certificates Available

　

　
  Z4B Series Fender Specifications

　

Z4B Series Dimension Table

SWL MBC DIMENSIONS ( mm ) Anchor Bolts Wgt.
( T ) ( T ) A B C D E F T H K L M R n d ( mm ) ( Kgs )
45 180 810 825 312 305 765 325 45 465 150 610 　 100 8 70 8-M64 1408
60 240 1060 850 325 430 776 420 50 465 150 560 155 100 10 70 10-M64 2100
75 300 1060 850 325 430 776 420 50 465 150 560 155 100 10 70 10-M64 2460
100 400 1120 1100 450 460 1010 520 60 480 150 600 300 100 10 82 10-M76 3620
125 500 1120 1100 450 460 1010 520 60 480 150 600 300 100 10 82 10-M76 4100
150 600 1300 1200 500 550 1040 520 60 480 150 680 180 100 10 86 10-M80 5230
All dimensions in mm.
Capstan optional
SWL listed are per hook. Multiply by hook numbers to get combined SWL for multiple hook systems
MBC listed are Mounting Base Capacity
Weights listed excluding weight for anchor bolt sets and capstan
All weights and dimensions listed are subject to change without notice
　 All materials herein are properties of Zalda Technology, all rights reserved.
