O Series Cylindrical Fenders



Classic, simple design Cylindrical2.jpg (52491 bytes)
Slow reaction buildup, low face pressure, suitable for a wide range of vessels
Flexible installation and easy maintenance for new or old dock
Up to 30m single element length and 4m outer diameter

   O Series Fender Specifications

Performance Information

At Rated Fender Deflection of 50%

Model

Standard

High

Energy Absorption
(T-M)

Reaction Force
( T )

Energy Absorption
(T-M)

Reaction Force
( T )

O150x1000
0.15
4.5
0.25
7.5
O200x1000
0.27
6.1
0.43
9.8
O250x1000
0.42
7.7
0.66
12.3
O300x1000
0.61
9.2
0.99
14.9
O350x1000
0.82
10.7
1.3
17.1
O400x1000
1.06
12.2
1.7
19.5
O500x1000
1.65
15.2
2.76
25.0
O600x1000
1.86
18.3
3.8
29.2
O700x1000
3.2
21.3
5.1
34.1
O800x1000
4.2
24.3
6.7
39.1
O900x1000
5.3
27.4
8.6
43.9
O1000x1000
6.5
30.4
10.5
48.9
O1100x1000
7.9
33.8
13.1
53.9
O1200x1000
9.7
37.1
15.5
58.6
O1300x1000
11.0
40.0
18.3
63.6
O1400x1000
13.0
43.1
21.2
68.4
O1500x1000
15.0
46.1
24.3
73.3
O1600x1000
18.0
49.2
28.9
79.2
O1700x1000
21.0
52.2
34.5
84.1
O1800x1000
25.2
55.2
41.4
89.0
O1900x1000
29.4
58.2
49.7
93.9
O2000x1000
32.8
66.7
59.6
107.6
Performance data listed for fender length of 1m. Calculate fender performance proportionally for fenders at different lengths.
Two standard formulas were listed. We do offer higher performance formula and customize fender performance according to requirements. Please inquire with your special requirements.
Performance data listed has +/-10% tolerance.
   O Series Fender Specifications

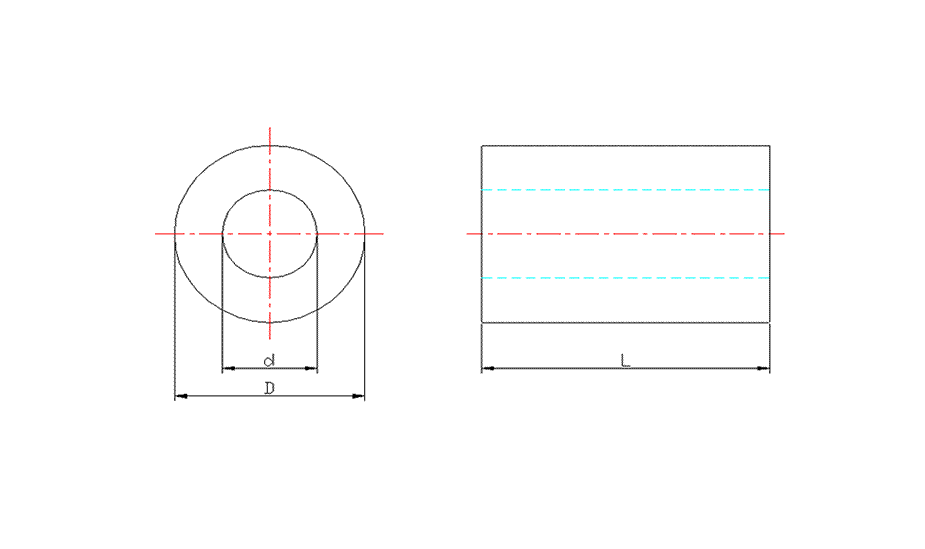

O Series Dimension Table

Dimensions

D

d

O150

150

75

O200

200

100

O250

250

125

O300

300

150

O350

350

175

O400

400

200

O500

500

250

O600

600

300

O700

700

350

O800

800

400

O900

900

450

O1000

1000

500

O1100

1100

550

O1200

1200

600

O1300

1300

650

O1400

1400

700

O1500

1500

750

O1600

1600

800

O1700

1700

850

O1800

1800

900

O1900

1900

950

O2000

2000

1000

All dimensions in mm.
Standard fender length 500 mm - 2000 mm. Custom length available on request.
