D Series Fenders |
 Simple and Versatile - Easy Installation, Maintenance and Replacement
Ideal For Pile, Beam, Ship Ramp
Slow Pressure Build Up
D Bore or O Bore |
 |
|
| D Series Fender Specifications |
|
|
Performance
Information |
|
At Rated Fender Deflection of 50% |
|
Model |
Energy Absorption
(T-M) |
Reaction Force
( T ) |
|
D 200 x 1000L |
0.52 |
15.0 |
|
D 200 x 1500L |
0.78 |
22.5 |
|
D 200 x 2000L |
1.04 |
30.0 |
|
D 300 x 1000L |
1.20 |
30.0 |
|
D 300 x 1500L |
1.80 |
45.0 |
|
D 300 x 2000L |
2.40 |
60.0 |
|
D 400 x 1000L |
2.00 |
39.0 |
|
D 400 x 1500L |
3.00 |
58.5 |
|
D 400 x 2000L |
4.00 |
78.0 |
|
D 500 x 1000L |
3.20 |
46.0 |
|
D 500 x 1500L |
4.80 |
70.0 |
|
D 500 x 2000L |
6.40 |
92.0 |
|
Performance data listed for fender length of 1m - 2m. Other fender lengths available. Calculate fender performance proportionally for fenders at different lengths. |
|
One standard formulas were listed. We do offer higher performance formula and customize fender performance according to requirements. Please inquire with your special requirements. |
|
Performance data listed has +/-10% tolerance. |
|
|
| D Series Fender Specifications |
|
|

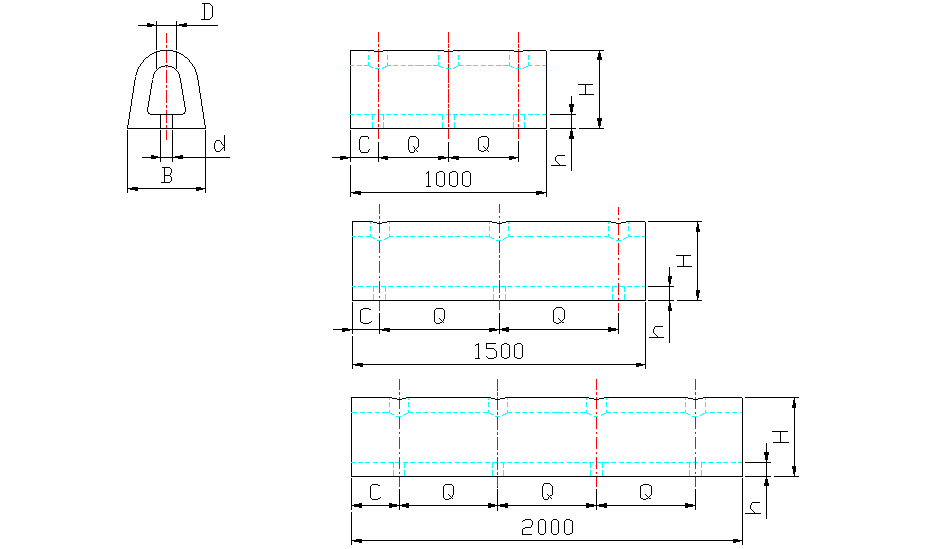

D Series Dimension Table
|
|
|
|
Dimensions |
H |
B |
L |
Holes |
Q |
c |
h |
D |
d |
|
D200 x 1000 |
200 |
200 |
1000 |
3 |
350 |
150 |
35 |
62 |
30 |
|
D200 x 1500 |
200 |
200 |
1500 |
3 |
600 |
150 |
35 |
62 |
30 |
|
D200 x 2000 |
200 |
200 |
2000 |
4 |
500 |
250 |
35 |
62 |
30 |
|
D300 x 1000 |
300 |
300 |
1000 |
3 |
350 |
150 |
40 |
65 |
32 |
|
D300 x 1500 |
300 |
300 |
1500 |
3 |
600 |
150 |
40 |
65 |
32 |
|
D300 x 2000 |
300 |
300 |
2000 |
4 |
500 |
250 |
40 |
65 |
32 |
|
D400 x 1000 |
400 |
400 |
1000 |
3 |
350 |
150 |
55 |
65 |
32 |
|
D400 x 1500 |
400 |
400 |
1500 |
3 |
600 |
150 |
55 |
65 |
32 |
|
D400 x 2000 |
400 |
400 |
2000 |
4 |
500 |
250 |
55 |
65 |
32 |
|
D500 x 1000 |
500 |
500 |
1000 |
3 |
350 |
150 |
90 |
97 |
45 |
|
D500 x 1500 |
500 |
500 |
1500 |
3 |
600 |
150 |
90 |
97 |
45 |
|
D500 x 2000 |
500 |
500 |
2000 |
4 |
500 |
250 |
90 |
97 |
45 |
|
All dimensions in mm. |
|
Standard fender length 800 mm - 3000 mm. Custom length available on request. |
|
Bolt hole positions can be customize. |
|
|
