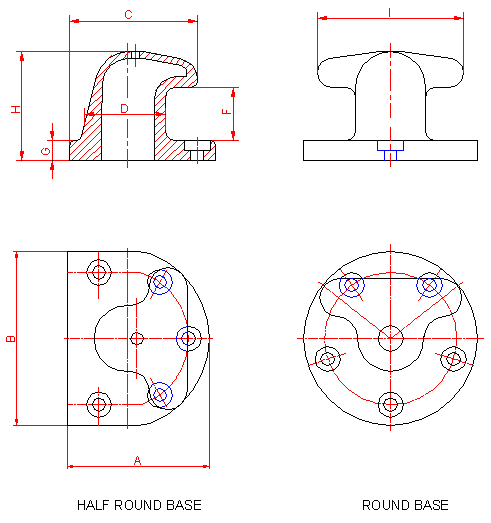

BOLLARDS - SERIES SBA2
Pull Tonnage TYPE A B C D F G H I Bolt No.
10-15 SBA2-10 305 370 285 150 130 45 248 250 5
15-25 SBA2-15 410 500 370 200 150 50 300 360 5
30-50 SBA2-30 500 570 430 220 200 55 355 400 5
50-75 SBA2-50 650 780 560 300 245 75 455 550 5
75-100 SBA2-75 700 800 590 320 240 80 460 550 7
100-150 SBA2-100 800 970 680 380 280 90 510 700 7
150-200 SBA2-150 880 1020 790 400 306 100 600 750 7

²  All Dimensions in mm / All Ratings in Metric Ton / Customization Available

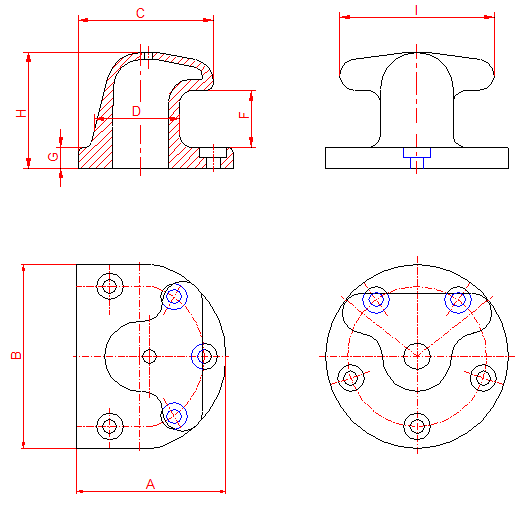

sba2dimensions
