CLEATS - SERIES CL-57
Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
20 CL57-20 1450 280 140 560 140 100 32 280 200 M20 8
30 CL57-30 1450 305 152 610 152 114 38 290 216 M25 8
40 CL57-40 1450 406 159 620 159 120 40 300 260 M27 8
50 CL57-50 1450 420 165 660 165 127 45 330 270 M33 8
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

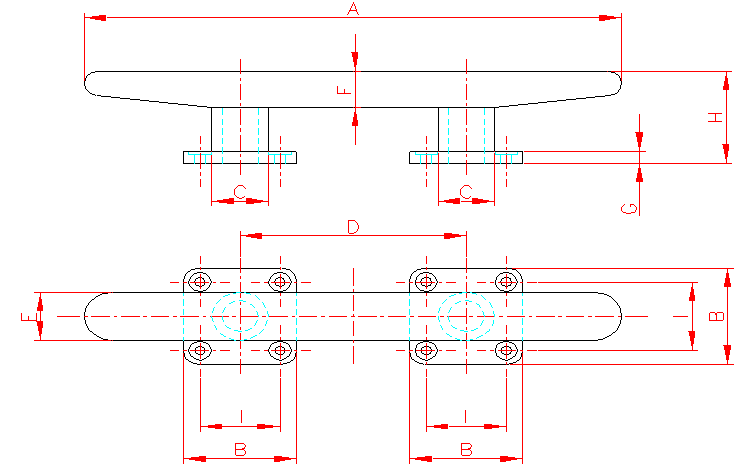

cl57dimensions
