CLEATS - SERIES CL-50
Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
15 CL50-15 1270 1000 220 580 90 170 30 254 855 M22 6
20 CL50-20 1270 1060 254 615 100 190 35 273 915 M24 6
30 CL50-30 1270 1080 300 620 105 230 40 280 915 M30 6
40 CL50-40 1270 1100 330 650 110 250 45 305 955 M36 6
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

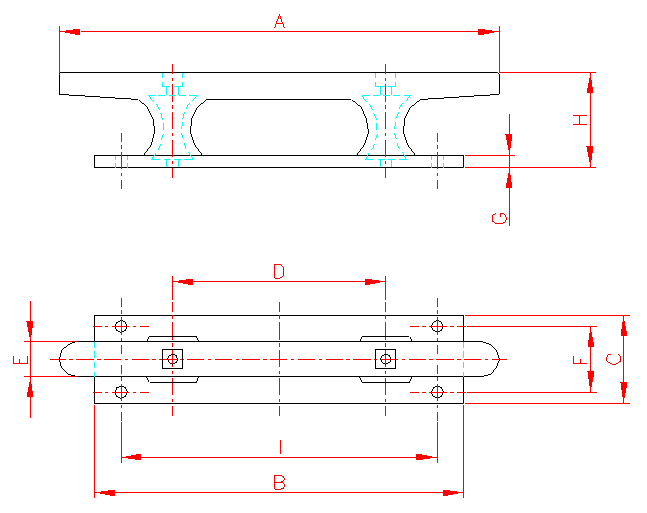

cl50dimensions
