CLEATS - SERIES CL-42
Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
15 CL42-15 1060 610 305 495 120 208 45 305 180 M25 8
25 CL42-25 1060 660 336 536 130 230 50 320 190 M27 8
30 CL42-30 1060 700 356 565 150 265 55 330 210 M30 8
35 CL42-35 1060 750 380 610 165 280 60 350 236 M33 8
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

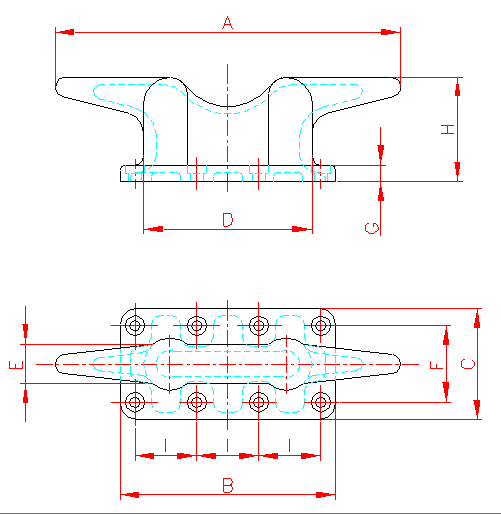

cl42dimensions
