CLEATS - SERIES CL-36

Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
10 CL36-10 915 533 305 445 100 205 45 250 152 M20 8
15 CL36-15 915 570 310 457 115 210 50 270 160 M22 8
20 CL36-20 915 600 330 460 125 230 55 305 170 M24 8
30 CL36-30 915 610 381 470 130 250 60 330 180 M30 8
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

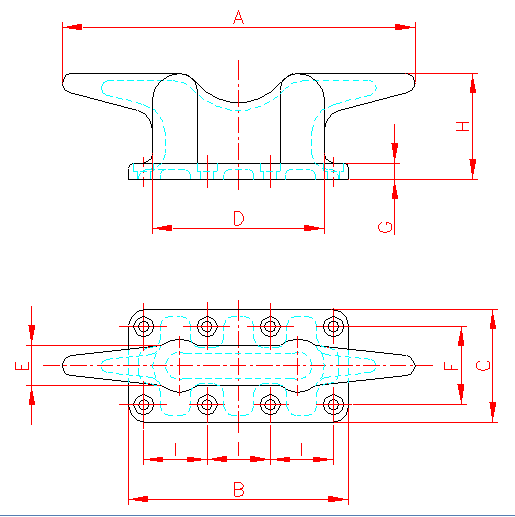

cl36dimensions
