CLEATS - SERIES CL-24
Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
10 CL24-10 610 380 220 280 60 140 40 180 140 M20 6
15 CL24-15 610 394 240 305 70 152 45 197 152 M22 6
20 CL24-20 610 430 270 330 90 180 55 220 170 M27 6
25 CL24-25 610 460 280 355 100 190 60 250 200 M30 6
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

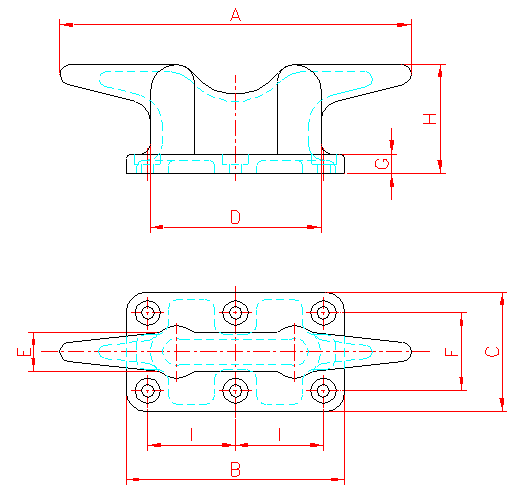

cl24dimensions
