CLEATS - SERIES CL-18

Pull Tonnage Type A B C D E F G H I Bolt Dia. Bolt No.
5 CL18-5 460 250 180 115 65 120 45 165 200 M20 4
10 CL18-10 460 280 200 127 70 130 50 185 210 M22 4
15 CL18-15 460 305 230 135 90 150 60 195 235 M27 4
20 CL18-20 460 330 250 150 100 160 65 200 250 M33 4
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

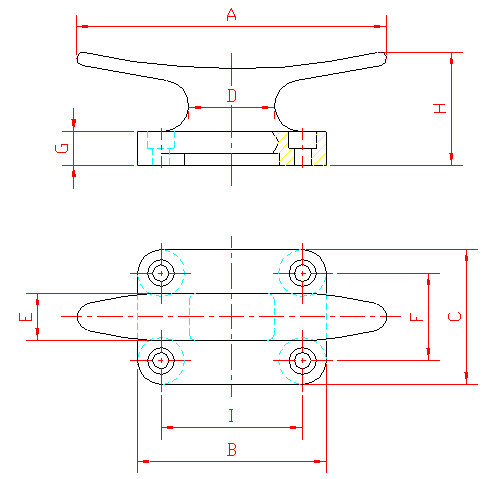

cl18dimensions
