CLEATS - SERIES CL-16
Pull Tonnage Type A B C D E G H I Bolt Dia. Bolt No.
5 CL16-5 406 200 80 180 45 16 90 120 M16 2
8 CL16-8 406 240 92 194 50 16 105 135 M22 2
10 CL16-10 406 285 100 210 60 25 115 140 M25 2
15 CL16-15 406 305 127 230 90 30 120 155 M39 2
²  All Dimensions in mm / All Material in ASTM A27 / Available for Customize

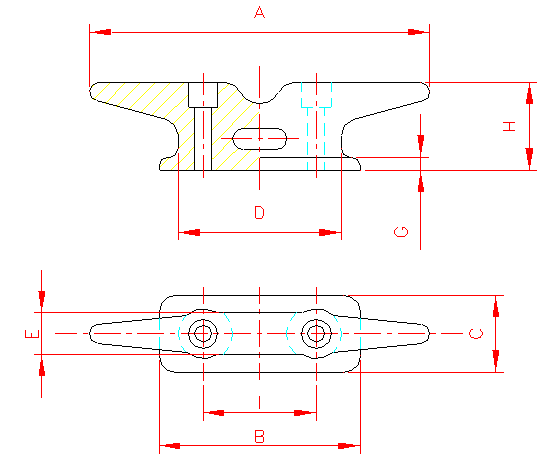

cl16dimensions
